In Conjunction With (ICW)
In Conjunction With (ICW)
These plates are designed to be used with the appropriate Level II or Level IIIA soft armour.
ICW Plates | Protection provided against | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
To be used In Conjunction With Soft Armour Vests. (Level II soft armour for Level III plates and Level IIIA soft armour for Level IV plates) |
R1 | AK-Ball | R4 | AK API | R1 AP | 30.06 AP | ||||
No. | Plate Designation | Composition | Weight (kg) | 7,62 x 51mm Ball | 7,62 x 39mm (MSC) | 5,56 x 45mm (M193) | 5,56 x 45mm (SS109) | 7,62 x 39mm API | 7,62 x 51mm AP | 7,62 x 63mm AP |
ICW1 | Level III ++ ULTRA-LIGHT | UHMWPE | 0,98 | ✓ | ✓ | ✓ | × | × | × | × |
ICW2 | Level III +++ SUPA LIGHT | Ceramic/UHMWPE | 1,6 | ✓ | ✓ | ✓ | ✓ | × | × | × |
ICW3 | Level III S A Mix | Ceramic/Aramid/GRP | 2,75 | ✓ | ✓ | ✓ | ✓ | ✓ | × | × |
ICW4 | Level III S A Mix Ladies Front | Ceramic/Aramid | 1,7 | ✓ | ✓ | ✓ | ✓ | ✓ | × | × |
ICW5 | Level IV | Ceramic/UHMWPE | 2,85 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
ICW6 | Level IV | Ceramic/Aramid/GRP | 3,25 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
![case](/media/nufcbm1k/icw1-ultra-light-level-iii-uhmwpe-3-d-view.jpg)
Level III ++ ULTRA-LIGHT ICW
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet![case](/media/pijodykq/icw2-supa-light-level-iii-ceramic-uhmwpe-3-d-view.jpg)

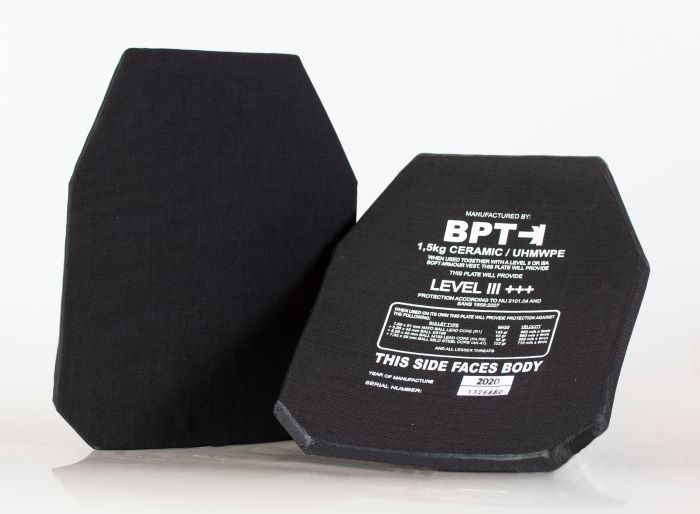

Level III +++ Supa Light
Designed to be light weight and give protection against the 5,56 x 45mm SS109 bullet. This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet![case](/media/wqznuxd0/icw3-level-iii-s-a-mix-ceramic-aramid-grp-3-d-view.jpg)

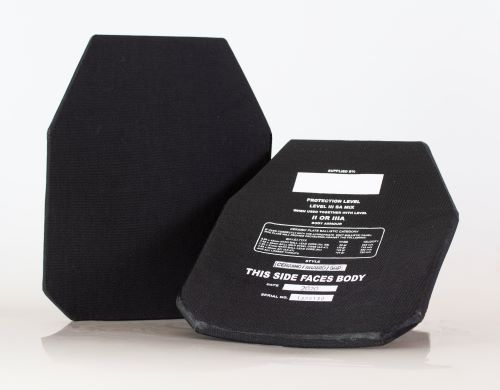

Level III SA Mix
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Designed specifically for the South African threat environment.
Spec Sheet![case](/media/rxkhjihz/icw4-ladies-front-level-iii-s-a-mix-ceramic-aramid-210-x-260mm-3-d-view.jpg)

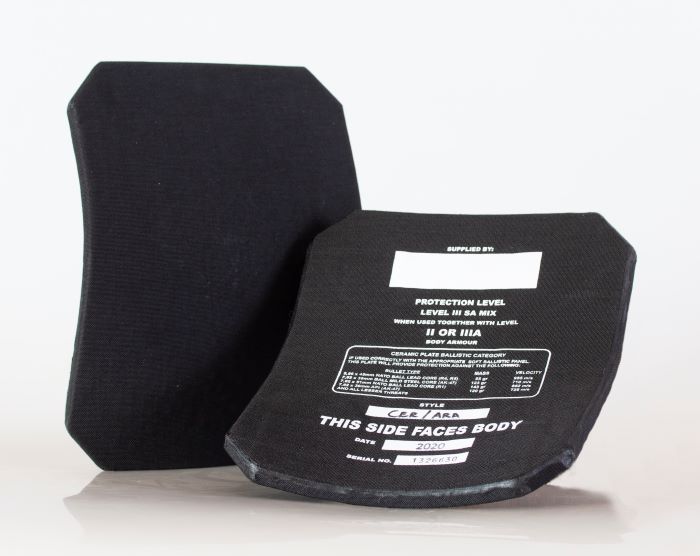

Level III SA Mix Ladies Front
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Designed for Female users.
Spec Sheet![case](/media/wydja4t3/icw5-level-iv-icw-2-85kg-ceramic-uhmwpe-3-d-view.jpg)

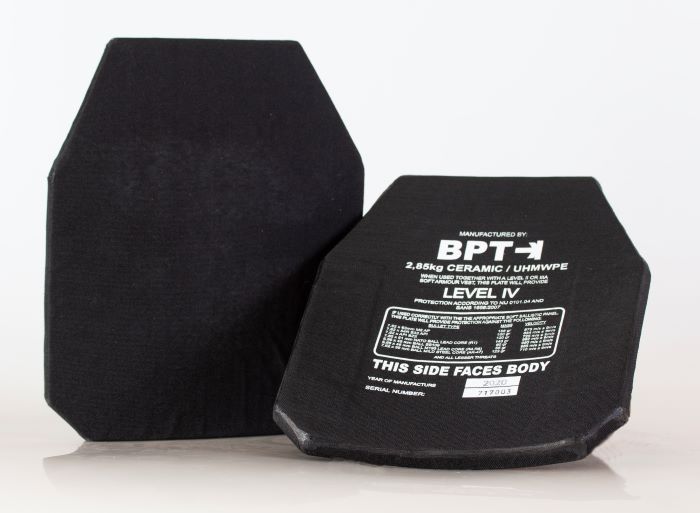

Level IV Ceramic/UHMWPE
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour. Lightweight level IV plate.
Spec Sheet![case](/media/r0vda3j1/icw6-level-iv-icw-ceramic-aramid-grp-3-d-view.jpg)

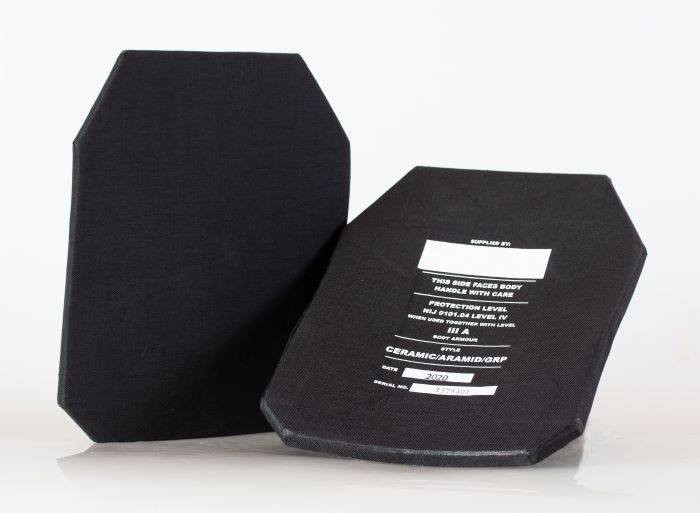

Level IV Ceramic/ARA/GRP
This plate is to be used In Conjunction With (ICW) Level II or IIIA Soft Armour.
Spec Sheet
